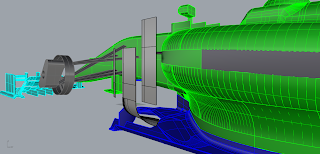

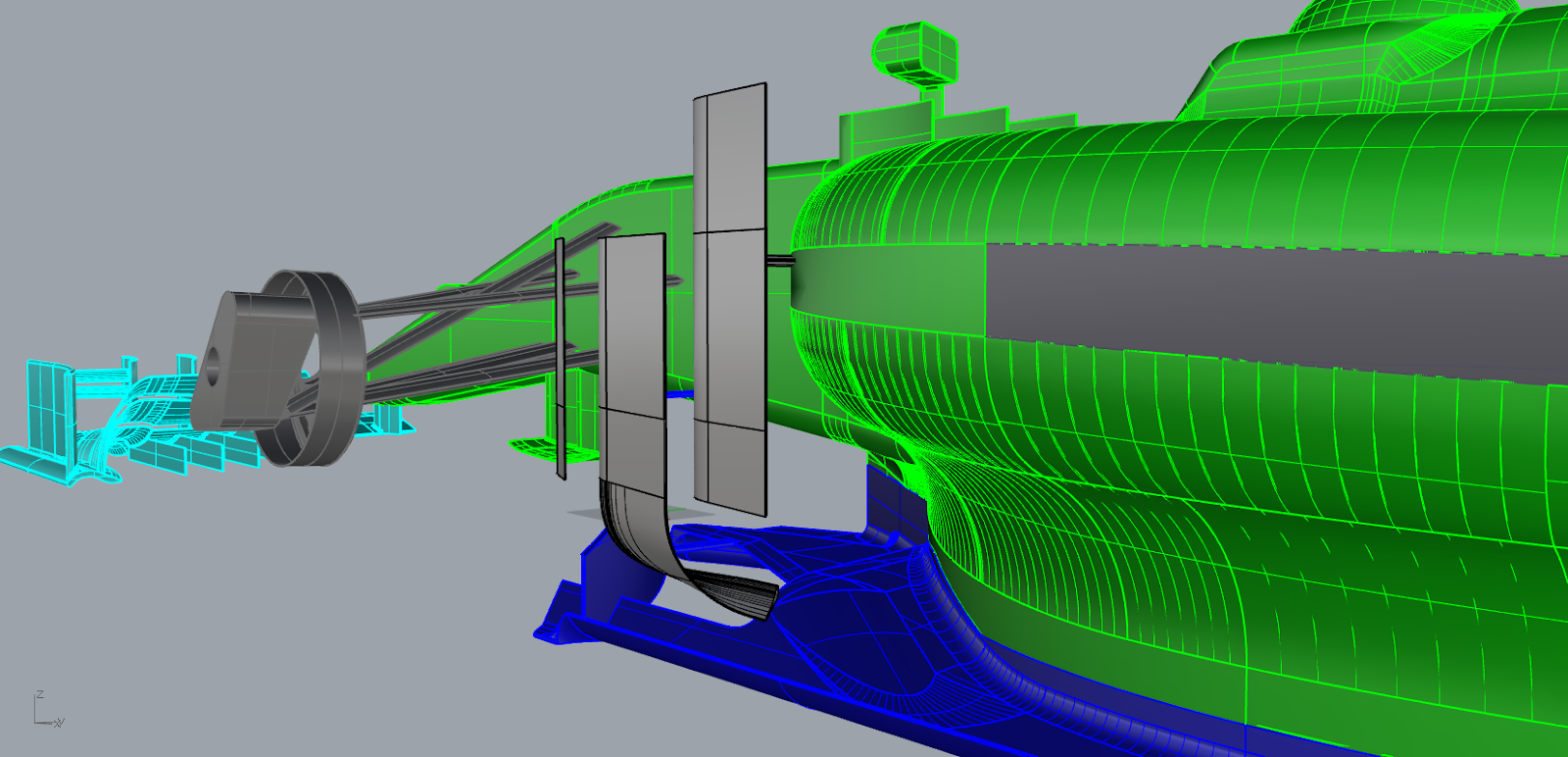

1. Side Pod Vanes
Base
Baseline (Perrinn F1 V13)
Type F
Type D based, short forward vane
Type G
Type D based, mid vane moved to upwards
Type H
Type D based, mid vane extended to backwards
2. Simulation Setup
Wind Speed: 50 m/s
Ride Height: 20mm/50mm (Front/Rear)
Solver: foam-extend-3.2 steady-state solver
Turbulence Model: Spalart Allmaras (+Rotation/Curvature Correction)
3. Forces
SCd = Frontal Area × Drag Coefficient
SCl = Frontal Area × Lift Coefficient
L/D = SCl / SCd
FrDF% = Front Downforce / Downforce
SCl_F = Frontal Area × Front Lift Coefficient
SCl_R = Frontal Area × Rear Lift Coefficient
Mass = Mass Flow Rate Passing Through Radiator
4. Visualization
Pressure Coefficient Front View
Pressure Coefficient Rear View

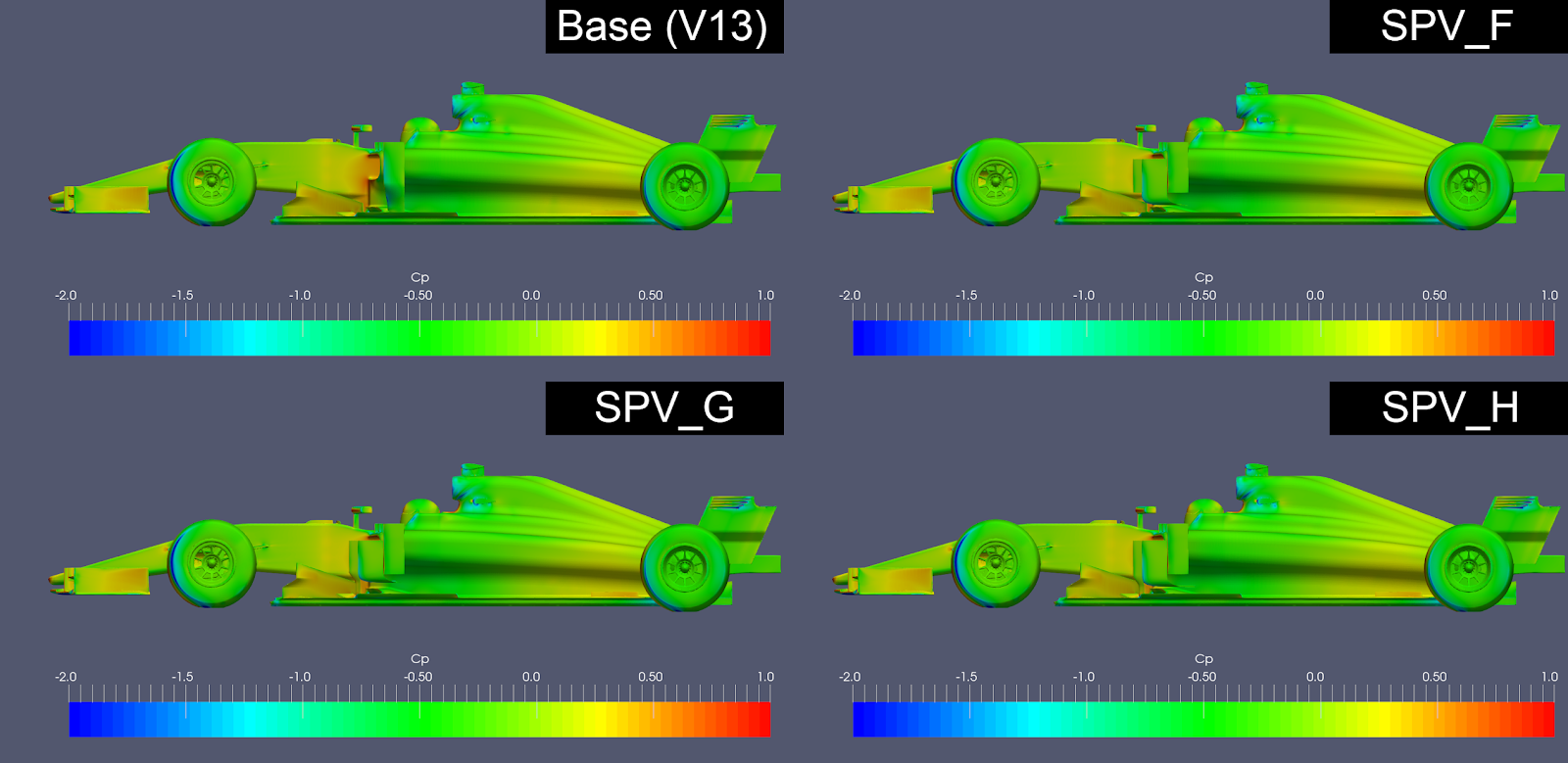

Pressure Coefficient Side View
Pressure Coefficient Top View
Pressure Coefficient Bottom View
Animation of Pressure Coefficient
