1. Mesh
Model: half (XZ plane symmetry)
Generator: snappyHexMesh
Background Mesh: 48.96m x 9.6m x 9.6m (96mm interval)
Refinement: level 5 (3mm on model surfaces)
Layer cells(body, tyres): 5 layers, 2.0 growth rate (first layer: 0.09375mm thick)
Layer cells(ground): 3 layers, 2.0 grouth rate
Number of Cells: 42.5million
Number of Cells: 42.5million
2. Conditions, Methods
Fluid: Standard Air (15℃ temperature, 1.225kg/㎥ density, 101325Pa pressure)
Wind Speed: 50m/s
Ride Height: 40mm(front)/50mm(rear)
Ride Height: 40mm(front)/50mm(rear)
Tyres: Rotating Wall
Algorithm: Steady-state PISO compressible
divScheme (U): VONOS (+ Defered Correction)
divScheme (nuTilda, h): SMART (+ Defered Correction)
3. Forces
CDA = Cd * A (frontal area)
CLA = Cl * A
L/D = DownForce / Drag
DF Fr% = FrontDownForce/DownForce
4. Visualisation
Cp calculated by (pressure - 101325)/(0.5*1.225*50^2)

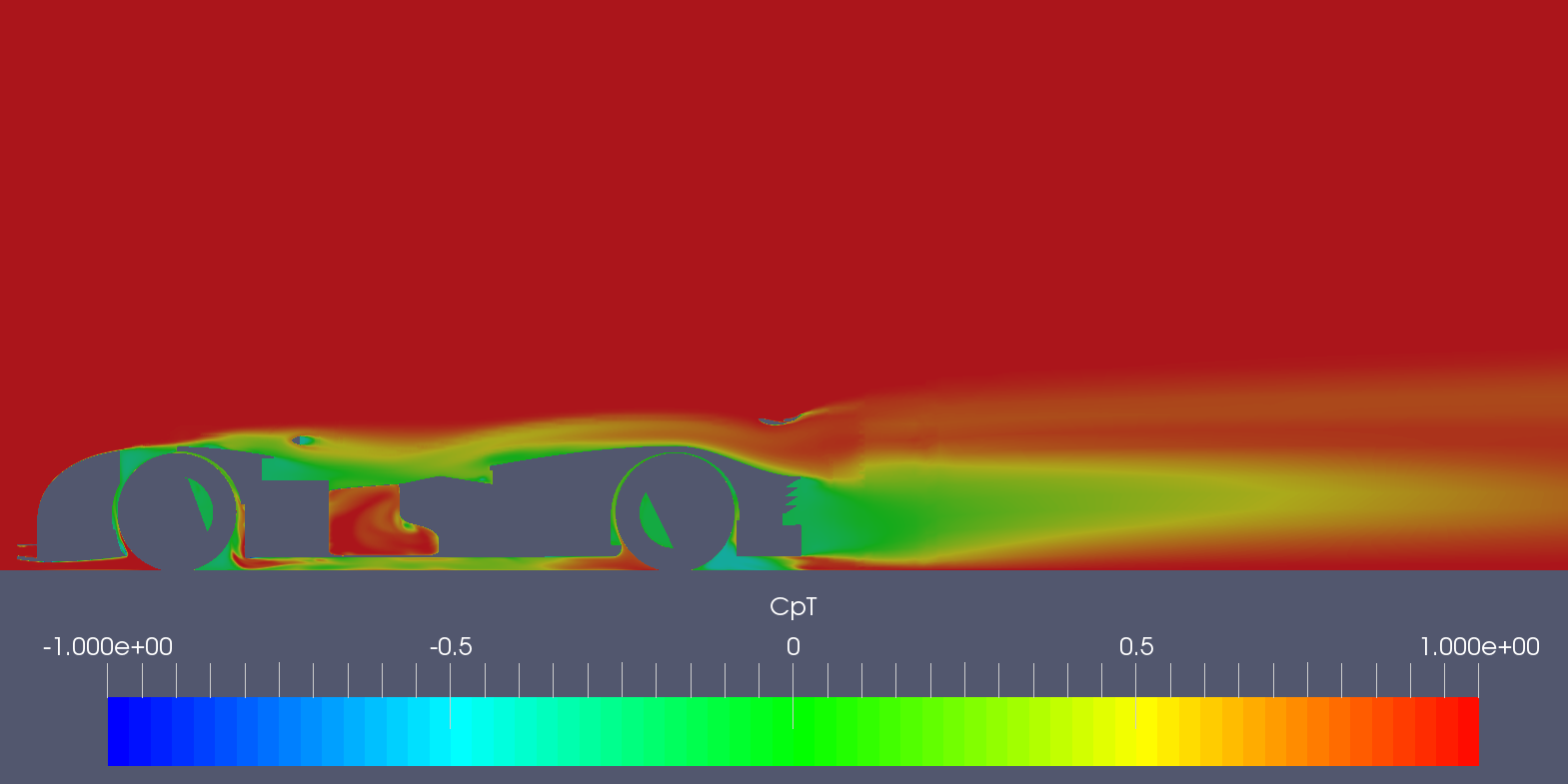

CpT calculated by (pressure - 101325 + 0.5*rho*mag(U)^2)/(0.5*1.225*50^2)
X = 0mm front wheel axle
X = 2950mm rear wheel axle
Y = 0mm symmetry plane
Y = 750mm tyre tread center
